Creating a time series forecast using IBM SPSS Modeler
In today's post, we discuss how to create a time series forecast using IBM SPSS Modeler. For the purposes of our exercise, we will use historical sales data at a SKU (stock keeping unit) level. This data is provided in a MicroSoft Excel .xlsx file and must be in the following format:
In the image above, AAAAA through EEEEE are SKU numbers with the relevant monthly sales data provided in the respective columns. There is also a column that indicates the grand total of all SKUs sold in a month (AAAAA +...+ EEEEE + other SKUs not shown in the image above). The last column in the image above reflects the months for which historical sales data are provided.

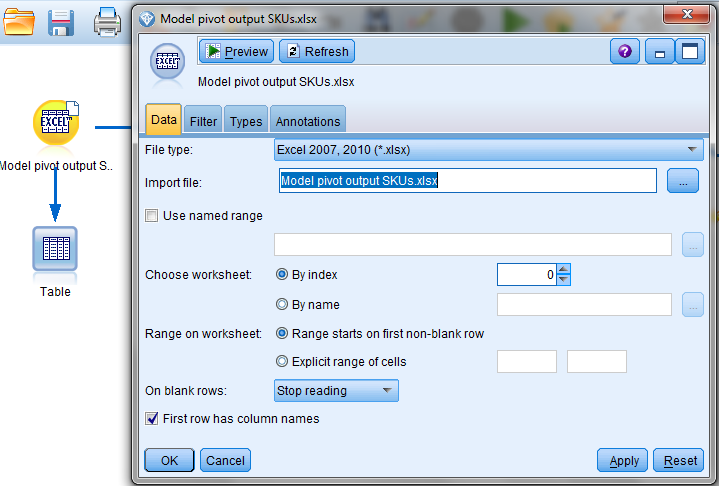

As with any modeling exercise, we first insert a source node into the modeling canvas. Since our data is in the MicroSoft Excel .xlsx file format, we insert an Excel source node as follows:
On exporting to a Table node, we see the output display as follows:
We then add a Filter node to select the five SKUs that we will be creating the time series forecast for:
We then add a Type node to identify the measurement type of each of Field and assign Roles to each field. Note from the image below that all fields here are assigned the role of "Target" since we want to forecast values for each of these fields. The date field is assigned the role "None":
Since the date format does not appear to be correct, we insert a reclassify node to create a new field called Date_New as follows:
The output now appears as follows:
As can be seen above, the new date field with the correct format appears next to the old field with the incorrect format. We then add a filter node to filter out the old date field with the incorrect format as follows:
We then add another Type node to assign the "None" role to the new date field as follows:
We then add a Time Intervals node from the Field Ops tab:
The Time Intervals node allows you to specify intervals and generate labels for time series data to be used in a Time Series modeling or a Time Plot node for estimating or forecasting. A full range of time intervals is supported, from seconds to years. For example, if you have a series with daily measurements beginning January 3, 2005, you can label records starting on that date, with the second row being January 4, and so on. You can also specify the periodicity—for example, five days per week or eight hours per day (IBM SPSS Modeler Help).
The time interval node is used to specified specify intervals as follows:
Before we insert the Time Series modeling node, there is one last action that needs to be taken with respect to the Time Interval node. This is in the Forecast tab of the Time Intervals node where we tick the "Extend records into the future" box and choose the number of months for which we want to create the forecast for:
We are now ready to insert the Time Series modeling node into the modeling canvas and attach it to the Time Intervals node. We choose the default options as follows and Run the node:
Finally, we attach a Time Plot node to the modeling nugget and evaluate the results:
As can be seen from the above time plot, the model has created a forecast for SKU ID AAAAA extending the historical sales numbers by the specified 6 months.
